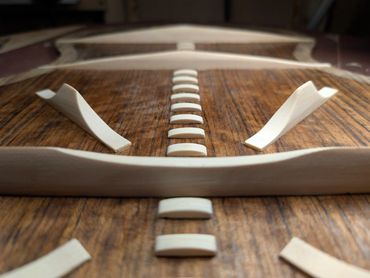

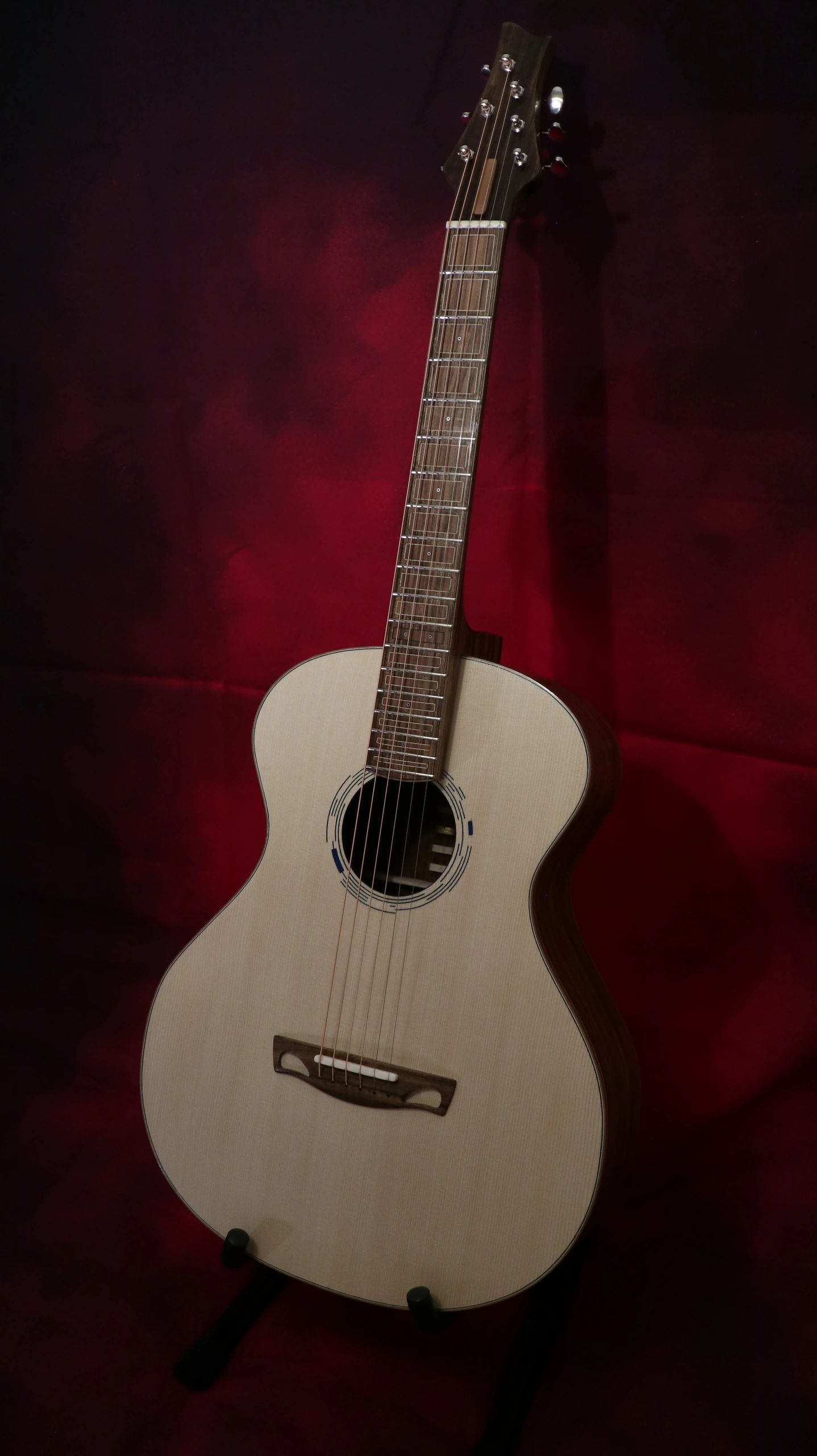

This LM12 represents a dramatic shift in building style for me. This is my first instrument to feature my pinless, skeleton bridge, floating fretboard and fully compensated nut and saddle. It certainly will not be the last as the result is a beautiful blend of overtones and a response that is eager to please the ear.
Model: LM12
Back and Sides: Ovangkol
Top: European Spruce
Neck: Black Limba
Fingerboard: Ovangkol with French Walnut inlays
Bridge: Ovangkol
Head plates: Ovangkol and French Walnut
Rosette: Segmented blue-dyed sycamore with resin inlays
Scale length: 635mm
Nut width: 47mm
String spacing at saddle: 58mm
Body length: 495mm
Lower bout: 390mm
Waist: 220mm
Upper bout: 260mm
Body depth at tail: 110mm
Body depth at heel: 90mm
Neck thickness at 1st fret: 21mm
Neck thickness at 9th fret: 23mm
Neck-body join: 12th fret
